履帶移動式裝置
Tracked mobile devices
履帶底盤的優點是著地面積比車輪式大，所以著地壓強�。涣硗馀c路面粘著力較強，所能提供的驅動力大。履帶底盤通過將環狀的循環履帶環繞在驅動輪和一系列滾輪外側，使車輪不直接于地面接觸，而是通過循環履帶于地面發生作用，再通過驅動輪帶動履帶，實現車輪在履帶上的相對滾動的同時，履帶在地面反復向前鋪設，從而帶動底盤運動。
The advantage of the track chassis is that the ground area is larger than the wheel type, so the pressure on the ground is small; Another there has the strong adhesion with the road, it can provide a large driving force. The track chassis surrounds the drive wheels and the outside of a series of rollers by circulating endless crawler belts, so that the wheels are not in direct contact with the ground, but through circulating the role of the track and the ground, and then driven by the wheel drive track, thereby realizing relative rolling of the wheel on the crawler belt, tracks are repeatedly laid on the ground, driving the chassis.
履帶式底盤一般采用仿坦克結構設計，即在底盤兩側布置一對帶有驅動裝置的雙履帶結構。每個履帶機構由一個驅動輪，一個導輪和多個負重輪組成，通過安裝時的對輪系限位，將包在外側的履帶張緊，驅動輪帶動履帶相對車輪移動，導輪限制履帶在運動中的位置，負重輪支承整個車體的重量。
The chassis of track generally use imitation tank structure to design, that arranged a pair of drive devices with dual track structure on both sides of the chassis. Each track mechanism consists of a drive wheel, a guide wheel and a number of load wheels, the track on the outer side is tensioned by the gear train limit at the time of installation, the drive wheel drives the track to move relatively to the wheel, the guide wheel limits the position of the track during movement, and the weight wheel supports the weight of the entire body.
采用履帶行走機構，具有較強的爬坡能力，能夠適應各種堆場工況。
Adopted track traveling drive, has the strong gradeability, and be able to adapt to a variety of yard conditions.

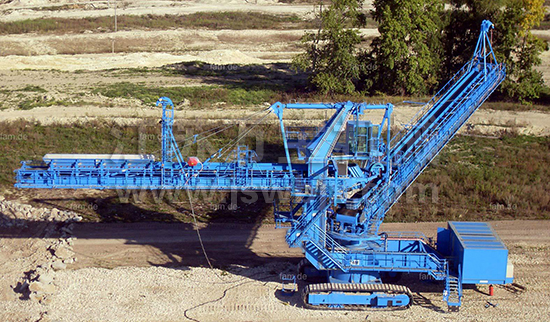

履帶移動式堆料裝置
Track Mobile Stacker
本產品設計用于接收散裝顆粒。直接從大容量自卸卡車，以最高625m3/小時的給料速度（速度取決于物料密度）接收密度最大為1.6 t/m3的散裝顆粒，并直接運輸?shù)揭粋�移動粉碎設備、篩選設備或其他工藝設備。
This product is designed to receive bulk particles. Receicing the bulk particles which the maximum density is 1.6 t/m3, and in the max feending speed of 625 m3/h(the speed depends on the material density), and the bulk patrticles will be transported directly from large-capacity dump truck to a mobile crushing plant, screening equipment or other process equipment.
堆料裝置適用于各種塊狀、粒狀等松散物料堆場堆料。它包括：行走機構；進料裝置；皮帶機系統；臂架俯仰機構；臂架旋轉機構；液壓控制系統；司機室；配電系統（移動式電站或電纜卷筒）等。
The stacker device could be applied for all kinds of blocky and granular material. It composed of mobile unit, loading unit, conveying belt unit, arm stretch unit, piling system, hydraulic pressure control system, driver cabinet and electricity supply unit(mobile power generator or wire rolls).
其特征是：全部系統安裝在移動式平臺上，可以在堆場場地內任意位置自由移動，行走輪采用履帶，無須在堆場內布置固定軌道，增加堆場利用率；進料裝置具備穩流功能，保證連續、均勻、平穩地供料；自卸卡車或裝載機以最快的速度直接卸料，極大提高了運營能力。
Its characterize: All systems are mounted on a mobile platform, it can be free to move anywhere in the yard site, walking wheel uses track, there is no need to place a fixed track in the venue, increase yard utilization; Feeding device has steady flow function, ensuring continuous, uniform and smooth feeding; dump trucks or loaders are unloaded as quickly as possible, greatly improving operational capability.
堆料機參數
Parameter of the stacker
|
技術參數名稱 Name of technical parameter |
客戶要求 Customer requirement |
|
收料斗長度 - A. (m) Hopper-Length A(m) |
|
|
收料斗寬度 -E(m) Hopper-width E(m) |
|
|
懸臂長度 - B. (m) Length of cantilever B(m) |
|
|
懸臂回轉角度 G(度) Boom slewing angle G(°) |
|
|
懸臂俯仰角度 F(度) Boom luffing angle F(°) |
|
|
堆料高度C(m) Stacking height C(m) |
|
|
堆料機堆料范圍D(m) Stacking area D(m) |
|
《堆料機系統配置表》
System configuration of stacker
|
系統配置 System configuration |
||||||
|
電 源 Power supply |
柴油發電機組 Diesel generator set |
|
市 電 Shore supply |
|
|
|
|
市 電 Shore supply |
電壓等級 Voltage |
|
頻率等級 Frequency |
|
|
|
|
臂 架 Boom |
俯 仰 Pitch |
|
徑向伸縮 Radial adjustable |
|
旋 轉 Rotation |
|
|
控制方式 Control method |
遙控器 Manual |
|
駕駛室 Cab control |
|
遠程控制 Remote control |
|
|
粉塵控制 Dust control requirement |
無要求 No requirement |
|
密 閉 Air tight |
|
除 塵 Dedusting |
|
|
防塵方式 Method of dust removal |
除塵器 Dust separator |
|
防塵罩 Dust cover |
|
水噴淋 Water spray |
|
|
溜槽內襯 Chute liner |
耐 磨 Wear-resistant |
|
普 通 Ordinary |
|
耐腐蝕 Corrosion resistant |
|
|
進料裝置 Feeding device |
連體式 On the equipment |
|
分體式 Split-type |
|
進料斗 Feed hopper |
|
|
其他要求. Other requirements |
||||||
|
|
||||||
